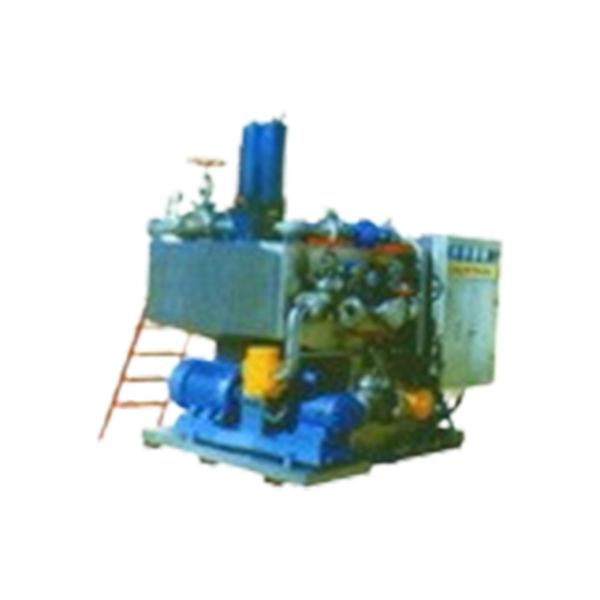

液壓投油管路清洗泵站由泄油柜、循環(huán)柜、駁油集油系統(tǒng)及液壓回路、電加熱溫控系統(tǒng)、 電控箱、管路等組成。用于船舶投油、集油、管路清洗等。
Pump device for hydraulic p~pes f,ushing consists of drainage tank,cycle oil tank, oiling and collectionsyslem.electric-heater and temperatut-contrcol system,electric-control box.pipes and so on.It can be used for oiling.oil collection and flushing within ship's pipes etc.
1電控箱 electric control box  | 12三通實驗閥 three way test valve  |
2螺桿泵及電機 screw pump and electric  | 13溢流閥 overflow valve  |
3吸油濾器 oil filter  | 14人孔蓋 manhole cover  |
4單向閥 check valve  | 15油箱箱體 oil box body  |
5壓力表 pressure guage  | 16空氣濾清器 air cleaner  |
6球閥 ball valve  | 17油位計 oil level  |
7流量計 flux scale  | 18吊耳 lifting eye  |
8壓力式溫度計 pressure type  | 19電加熱器 electric-heater  |
9雙聯(lián)粗濾器 duplex oil filter  | 20放泄螺塞 drain plug  |
10青銅止回閥 bronze check valve  | 21槽鋼 channel steel  |
11溫度控制器 temperature controller  |
